Description

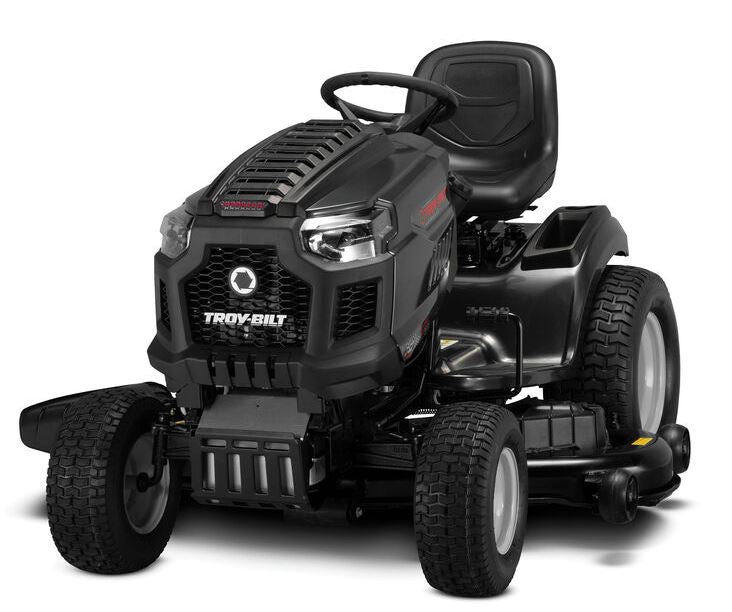

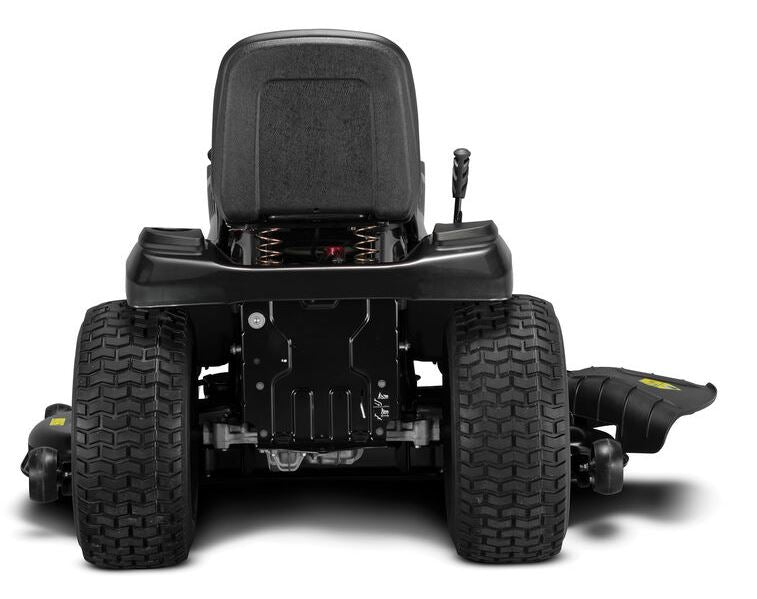

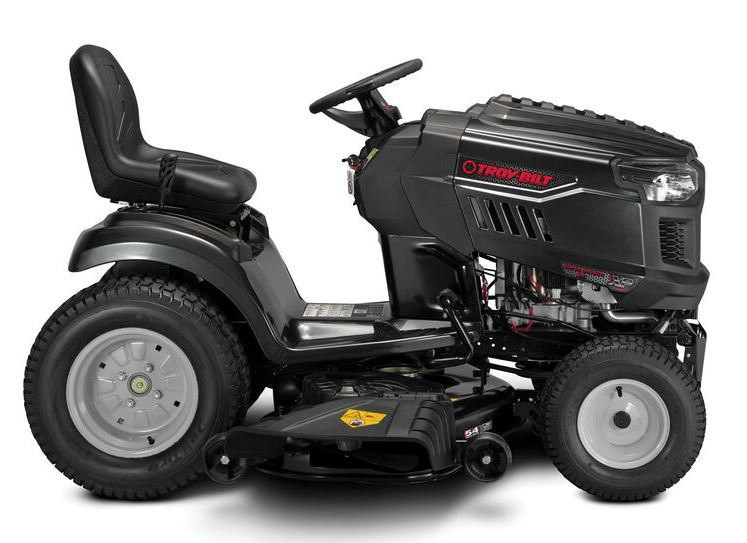

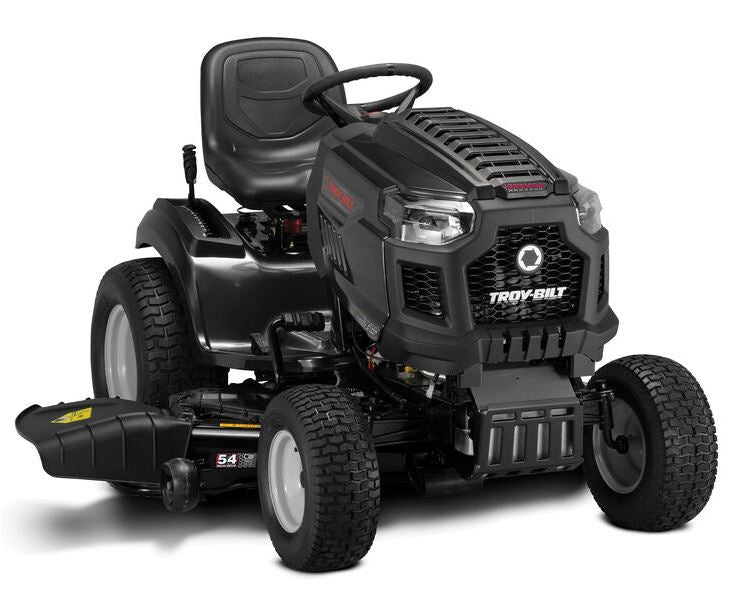

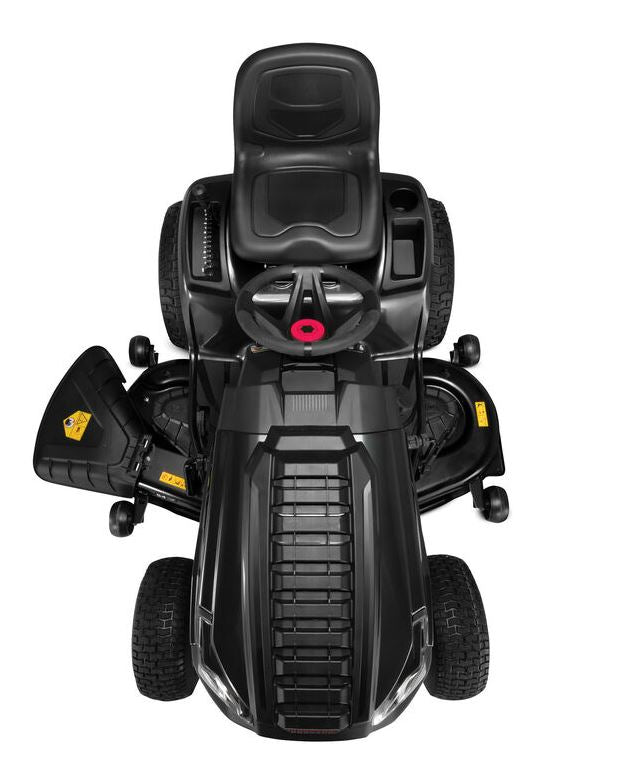

Get extra performance and durability with the Troy-Bilt XP™ Series of riding lawn mowers. Easily engage the large 54" deck with electric PTO switch. The systems monitor with LED readout let's you know when the riding mower is ready for service and the hydrostatic drive is smooth and easy with foot-pedal control. The XP™ Series includes a 3-year limited warranty for extra peace of mind.
- Powerful 24 HP*/725cc twin-cylinder KOHLER engine designed to deliver quiet, balanced performance
- Hydrostatic transmission has foot-pedal control for a smooth change of speed and direction and includes cruise control to help mow at a constant speed
- 54" side discharge, triple-blade steel deck helps minimize mowing time in large areas and the 4 anti-scalp deck wheels and nose roller help prevent turf damage and deliver a clean, even cut
- Electric PTO quickly and easily engages cutting blades
Engine
- Engine BrandKohler®
- Engine Model7000 Series
- Engine Model NumberKT735
- Engine Displacement725cc
- Engine Output24HP
- Starter TypeElectric
- Fuel Tank Capacity3.0 gal. US (11.36 L)
- CylindersTwin
- Engine StartIgnition Key
- Engine Oil Capacity2.0 qt. US (1.89 L)
- LubricationFully pressurized
- Charging System12 amp regulated
- Fuel GaugeNo
- GovernorMechanical
- ChokeChoke-a-matic
- Air FilterDual element
- Oil FilterYes
- Fuel DeliveryCarburetor
Battery
- Battery210 CCA
- Battery TypeAGM (Absorbent Glass Mat)
- Battery Voltage12V
Drive System
- TransmissionTuff Torq® K46
- Forward Speed5.5 MPH / 8.6 KMH
- Reverse Speed2.5 MPH / 4 KMH
- Rear Axle3/4"
- Drive SystemHydrostatic
- Transmission ControlFoot Pedal
- Transmission HousingAluminum
- Rear Differential LockNo
Cutting Deck
- Deck Cutting Width54 in
- Deck WashYes
- Deck Material11-gauge steel
- Deck Engagement (PTO)Electric
- Deck ConstructionStamped
- Blade(s)Three
- Deck LiftHand lever
- Cutting Height Range1.5” - 3.75”
- Anti-Scalping5 gauge wheels
- Deck Positions12
Warranty
- Warranty3-year limited residential
- Frame Warranty3-year limited
- Front Axle Warranty3-year limited
- Deck Shell Warranty3-year limited
- Commercial WarrantyNo
Chassis
- FrameRobotically welded
- Turning Radius16"
- BumperNo
- Rear Tow HitchYes
- Corrosion ProtectionYes
- Front Pivot BarCast iron
Controls
- Cruise ControlYes
- BrakesDisc
Comfort
- Seat TypeHigh-back
- ArmrestsNo
- Seat AdjustmentLever
- Floor MatsRubber
Wheels
- Bearing TypePoly Bushing
- Rear Tires22"x 9.5"-12"
- Front Tires16"x 6.5"-8"
- Tire TreadTurf Saver
Additional Specifications
- Mulch KitAvailable Separately
- Headlight(s)Standard
- Cup HolderYes
- Operator Presence SystemYes
- Model Number13AQA2BWA66
