Description

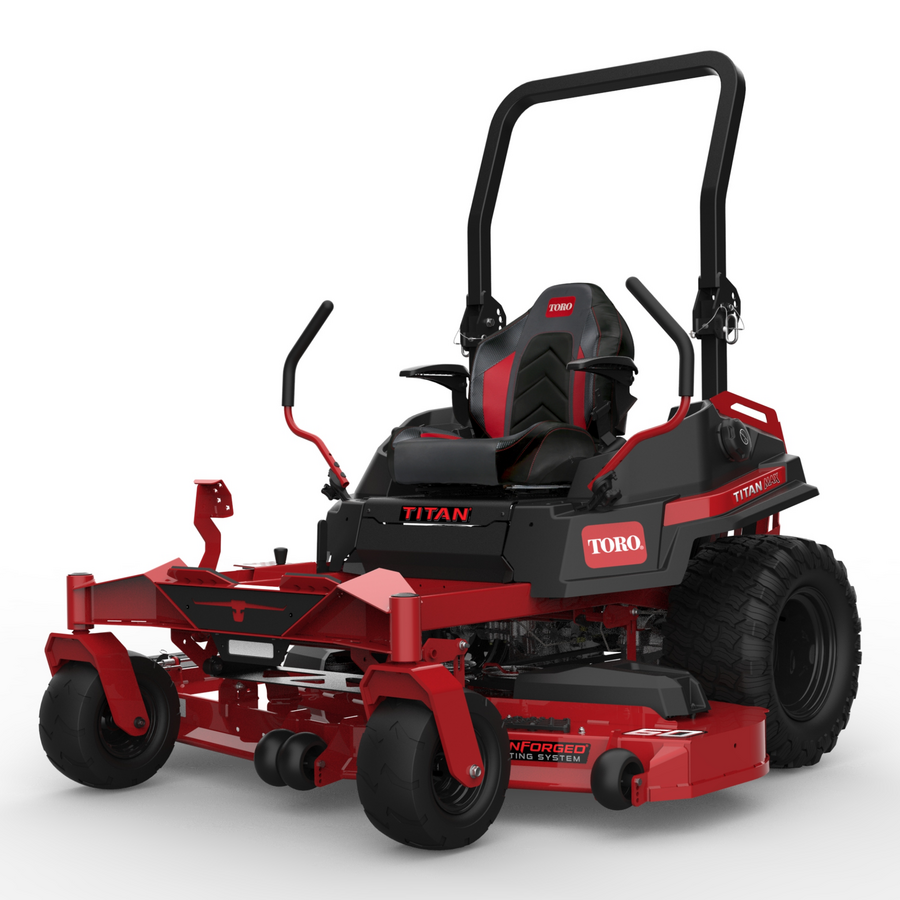

Toro 76606 TITAN MAX Z-Turn Mower 26hp Kohler 747cc V-Twin w/60" Fabricated Deck
- Massive 23-inch rear tires feature aggressive treads meant to bring Mother Nature to her knees—all without tearing up your turf.
- Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
- Power forward, knowing you've got visibility in any environment with the integrated LED task light.
- Built-in arm rests keep you steady and in control.
- Built with an upgraded transmission for relentless performance.
- Upgraded compression springs amp up suspension.
- No refills, just relentless power with a 7-gallon fuel capacity.
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
Specifications
| Anti Scalp Wheels | 4 Standard |
|---|---|
| Armrests | Standard |
| Blade Tip Speed | 17,852 ft/min / 5,441 m/min |
| Box Dimensions | 91 in. x 70.25 in. x 52.25 in. / 231.1 cm x 178.4 cm x 132.7 cm |
| CARB Compliant | Not CARB Compliant |
| Cup Holder | Standard |
| Deck Design | 10-Gauge steel IronForged® with fully weld grade 50 Steel bumper |
| Deck Material | 10 Gauge High-Strength Steel |
| Deck Size | 60 in / 152 cm |
| Discharge Chute | Rubber |
| Drive Type | Rear-Wheel Drive |
| Engine | 26 hp* Kohler 747 cc |
| Engine Brand | Kohler |
| Engine Displacement (cc) | 747 cc |
| Engine Horsepower | 26.0 hp |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 9.0 mph / 14.4 kph |
| Forward Mowing Speed | Up to 9.0 mph / 14.4 kph |
| Front Bumper | Bull-Nose |
| Fuel Capacity | 7 gal. / 26.5 L / 28 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.0 in. / 3.8 - 12.7 cm |
| Hitch Bracket | Standard |
| Number of Blades | 3 |
| Product Features | Cup Holder, Electric Start, Hitch Bracket |
| Product Type | TITAN Max |
| Product Use | Residential |
| Recommended Oil Type | 10W - 30 with filter change |
| Roll-Over Protection System (ROPS) | Standard |
| Seat | 20" Gaming Style |
| Spindle Housing | 8 in / 20.3 cm Cast Aluminum |
| Start Type | Electric |
| Steering Controls | Dual Wrap Around Levers |
| Steering Dampeners | Pro-Control Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | Tires, Drive: 23 in. x 11 in. – 12in. (58.4 cm x 27.9 cm - 30.5 cm) Tires, Front: 13 in. x 6.5 in. – 6 in. (33 cm x 16.5 cm - 15.2 cm) |
| Transmission | HG ZT3100 |
| Weight | 839 lbs / 380.6 kg |
| Yard Size | Up to 7 acres |
Disclaimer
Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
*26 HP gross (747 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kohler®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for warranty details.
*26 HP gross (747 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kohler®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for warranty details.
Accessory List (Not Included)
| Model/Part # | Description |
| 136-7490 | Recycler Mulch Kit |
| 79348 |
Powered Bagger |
