Description

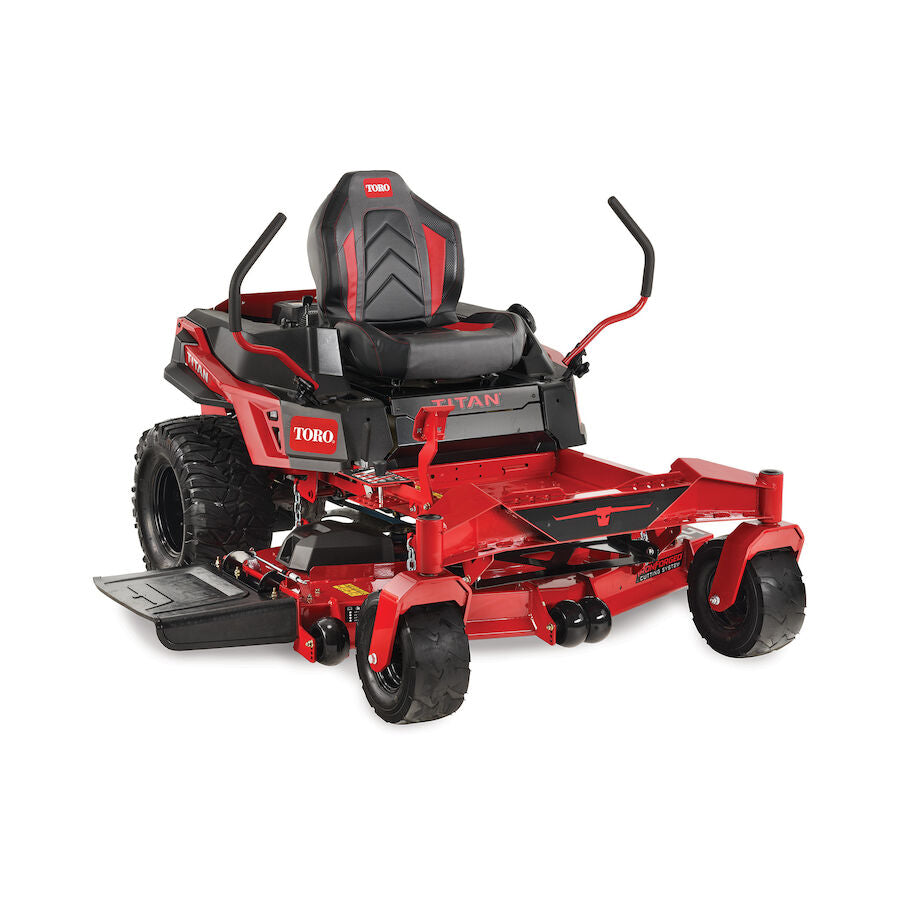

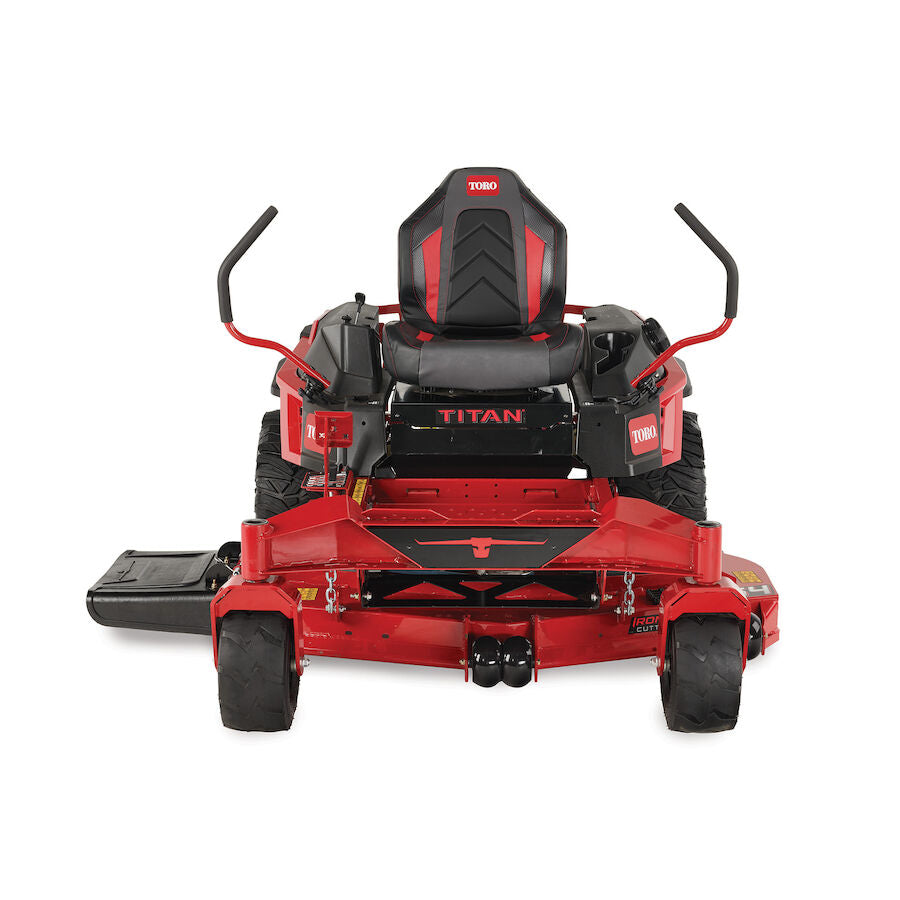

Toro 76501 TITAN Z-Turn Mower 26hp Kohler 747cc V-Twin w/54" Fabricated Deck
- Built with a commercial-style I-beam front end for extreme durability and strength.
- Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
- Massive 22" rear tires feature aggressive treads meant to bring Mother Nature to her knees.
- Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
- The gaming-style seat gives you big time support exactly where you need it.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- The rubber discharge chute flexes without busting up your landscaping or your ride.
- Its gigantic engine delivers mega power so you can absolutely dominate nature's worst.
- A cast aluminum stomp pad helps you scrape your boots, get your grip, step up and let 'er rip.
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
Specifications
| Air Filter | Kohler Pro Cleaner Air Filter |
|---|---|
| Anti Scalp Wheels | 4 Standard |
| Armrests | Optional |
| Blade Design | 0.164 in. / 0.417 cm Steel with Blade Stiffner |
| Blade Tip Speed | 18,908 ft/min / 5,763 m/min |
| Box Dimensions | 82.0 in. x 63.0 in. x 52.0 in. / 208.3 cm x 160.0 cm x 132.0 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 13 in. x 6.5 in. - 6 in. (33 x 16.5 cm - 15.2 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1" (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Deck Design | 10-Gauge Steel IronForged® with Fully Weld Grade 50 Steel Bumper |
| Deck Material | 10 Gauge Steel |
| Deck Size | 54 in / 137 cm |
| Discharge Chute | Rubber |
| Drive System | Hydrostatic |
| Drive Tires | 22 in. x 11 in. (55.8 cm x 27.9 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | Kohler KT745 26 hp 747cc |
| Engine Brand | Kohler |
| Engine Displacement (cc) | 747 cc |
| Engine Horsepower | 26.0 hp |
| Engine Power (kW) | 19.3 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 8.5 mph / 13.6 kph |
| Forward Mowing Speed | Up to 8.5 mph / 13.6 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Front Bumper | Reinforced Bull-Nose |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 - 5.0 in. / 3.8 - 12.7 cm |
| Hitch Bracket | Standard |
| Number of Blades | 3 |
| Product Type | TITAN |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 20" Gaming Style |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 13 in. x 6.5 in. (33 x 16.5 cm) Front, 22 in. x 11 in. (55.8 cm x 27.9 cm) Rear |
| Transmission | Dual hydrostatic HG ZT2800 |
| Weight | 751 lbs / 340.6 kg |
Disclaimer
*26 HP gross (747 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kohler®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for warranty details.
‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
†See retailer for warranty details.
‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
Accessory List (Not Included)
| Model/Part # | Description |
| 136-7489 | Recycler Mulch Kit |
| 79348 |
Powered Bagger |
