Description
HUSQVARNA 122HD60
122HD60

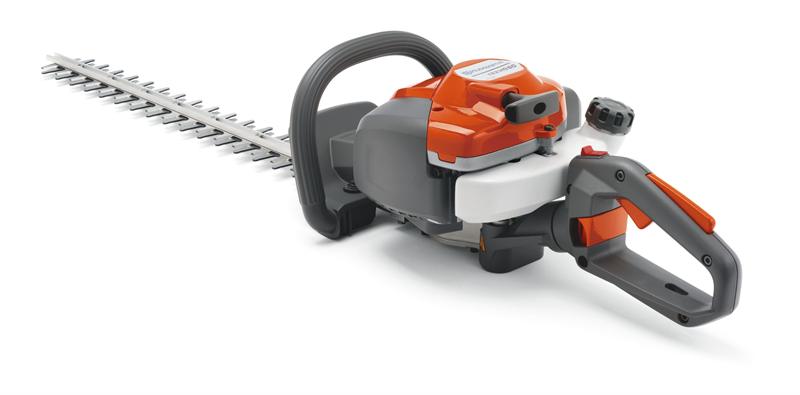

Husqvarna 122HD60 is a low noised and light weight hedge trimmer for domestic use with easy to use functions such as Smart Start® and adjustable rear handle.
Long cutter bar
Long cutter bar for extended reach
Smart Start®
The engine and starter have been designed so the machine starts quickly with minimum effort.
Auto return stop switch
Stop switch automatically resets to the ON position for easier starting.
Adjustable rear handle
The rear handle is adjustable to facilitate cutting the sides and top of hedges.
Air Purge
Removes air from carburetor and fuel system for easy starting.
LowVib®
Effective anti-vibration dampeners absorb vibration, reducing stress on the userâs arms and hands.
Traveling connection
Travelling connection requires less energy when working and can be connected in a grass- or forest position.
Low noise
The low noise engine technology and the special design make this hedge trimmer quiet and easy to use. Very important for everyone who operates in residential areas.
| Engine specification | |
|---|---|
| Cylinder displacement | 21.7 cc |
| Cylinder bore | 1.3 inch |
| Cylinder stroke | 1.1 inch |
| Power output | 0.8 hp |
| Maximum power speed | 7800 rpm |
| Fuel tank volume | 10.14 fl oz |
| Maximum recommended engine speed | 9000 rpm |
| Carburetor | Ruixing |
| Fuel consumption | 575 g/kWh |
| Idling speed | 2800 rpm |
| Spark plug | NGK CMR6A |
| Electrode gap | 0.02 " |
| Ignition system | SEM |
| Ignition module air gap | 0.01 " |
| Air filter type | Foam |
| Equipment | |
|---|---|
| Knife Length | 23 inch |
| Teeth opening | 1.1 " |
| Recommended maximum twig diameter | 0.8 " |
| Cutting speed | 4050 cut/min |
| Transmission data | |
|---|---|
| Gear ratio | 4.44:1 |
| Vibration & noise data | |
|---|---|
| Equivalent vibration level (ahv , eq) front / rear handle | 4.1/3.6 m/s² |
| Sound pressure level at operators ear | 94 dB(A) |
| Sound power level, guaranteed (LWA) | 101 dB(A) |
|
Overall dimensions
|
|
|---|---|
|
Weight
|
10.8 lbs
|
