Description

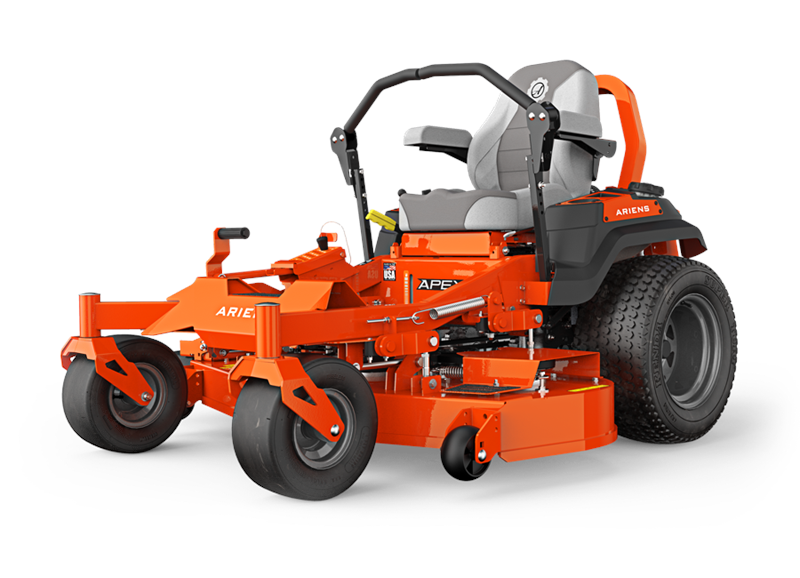

Ariens 991159 Apex 52" Fab Deck 23 HP Kawasaki Zero Turn Mower
Features:
- Featuring a 52 fabricated deck thats 5½ deep and made of 10-gauge steel
- Powerful 23 hp/726 cc Kawasaki® FR691 engine
- Fully tubular steel frame, Self-adjusting belt technology, High-Back Padded Seat and armrests, Foot-operated deck lift
Specifications
TITLE: APEX 52
ENGINE: Kawasaki® FR691
DISPLACEMENT (CC): 726 cc
DRIVE SYSTEM: Hydro-Gear® ZT-3100 Transaxles
FUEL CAPACITY: 5.1 Gallon (19.3L)
GROUND SPEED (APPROXIMATE MPH) (FWD/REV): 8 mph/4 mph
DECK MATERIAL: 10 ga
DECK CONSTRUCTION: Fabricated
NUMBER OF SPINDLES: 3
BLADE TIP SPEED (FPM): 18,000
SPINDLE SHAFT: Steel
DECK DRIVE: Belt
DECK ENGAGEMENT: Electric Ogura®
DECK LIFT SYSTEM: Foot Operated
CUTTING WIDTH: 52 in
CUTTING HEIGHTS: 1.5-5 in
CUTTING POSITIONS: 15
WHEELS (FRONT): 13 x 6.5 in - 6 in
WHEELS (REAR): 22 x 10.5 in - 12 in
SEAT: High Back Premium w/ Padded Armrests
HOUR METER: Standard
WARRANTY (MACHINE): 4 year or 500 hours
WARRANTY (DECK & FRAME): 5 Year Limited
WEIGHT: 850 lbs
LENGTH: 79 in
WIDTH: 67 in
HEIGHT: 47 in
FRONT AXLE: Fixed
Accessories:
| 891008 | 2 Bucket Powered Bagger - Fits Apex models (Requires bagger mount kit and lower rops bagger mount kit) |
| 791078 | Lower Rops Bagger Mount (Required for installation of bagger on APEX units without a ROPS) |
| 791065 | 52" Bagger Mount Kit - Fits Apex models with 52 deck |
| 791058 | 52" Grass Mulching Kit - Fits Apex models with 52 deck |
| 792103 | 48" and 52" Operator Controlled Chute Baffle - Fits 48 and 52 Apex models |
| 791043 | 52" Discharge Cover Kit 52" - Fits Apex models with 52 deck |
