Description

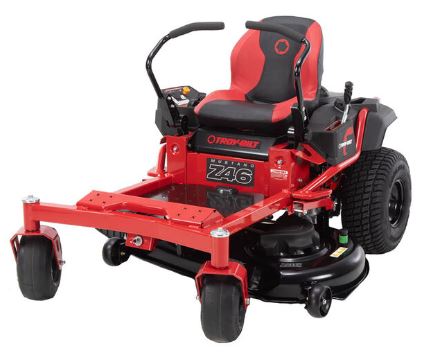

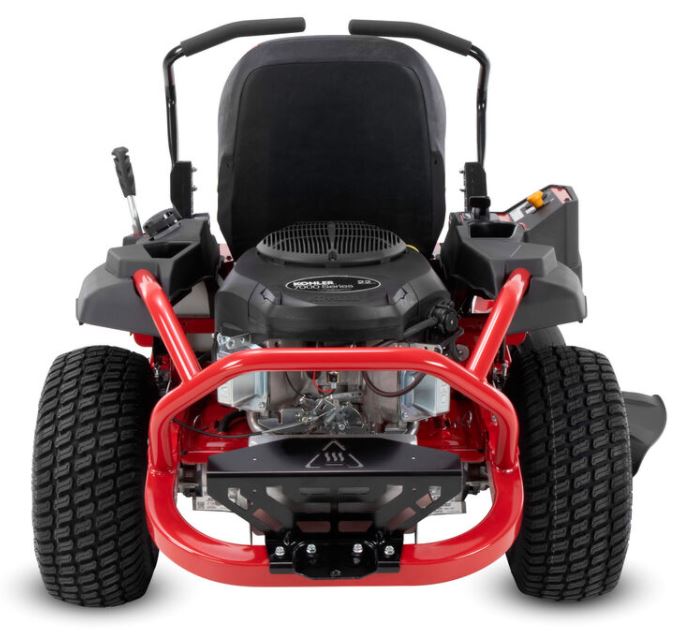

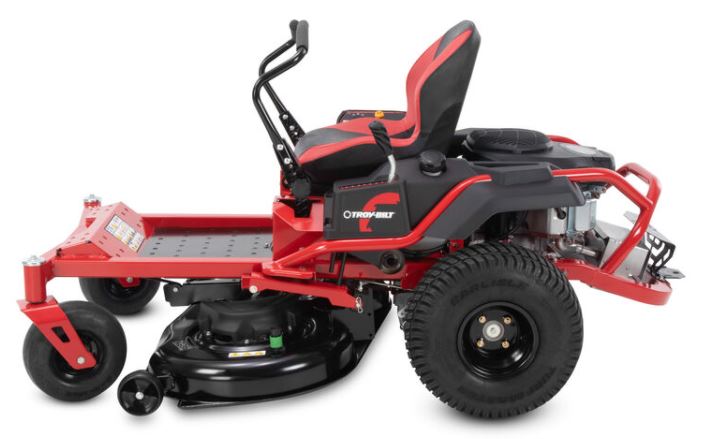

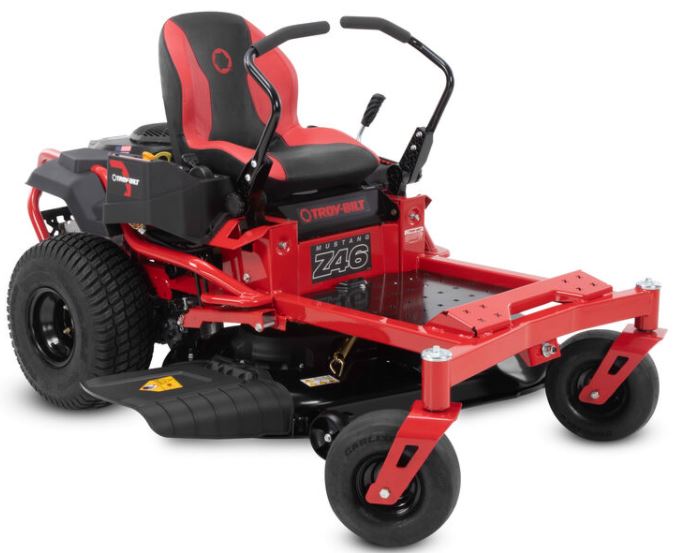

The dual hydrostatic transmissions on the Troy-Bilt® Mustang Z46 are designed to quickly turn at the end of a row and mow around trees and landscape beds, making it easy to get the job done. A 725cc twin-cylinder KOHLER® engine is engineered for reliable power, and quiet, balanced performance. The rugged steel frame is designed to absorb impact, provide stability, and is covered by a limited lifetime warranty. Quickly and easily engage the 46" cutting blades with the electric PTO and help prevent turf damage with two anti-scalp deck wheels. An adjustable high-back seat and foam grip steering controls help provide comfort.
- Powerful 22 HP*/725cc KOHLER® twin-cylinder engine designed to deliver quiet, balanced performance
- Full-length, fully welded, 2" tubular steel frame is designed to absorb impact, provide stability and is covered by a limited lifetime warranty
- Dual hydrostatic transmissions deliver true zero-turn performance and are designed to help quickly cut and maneuver around obstacles while mowing
- 46" twin blade cutting deck with two anti-scalp deck wheels helps prevent turf damage and is engineered to deliver a clean, even cut.
Engine
- Engine BrandKohler®
- Engine Model7000 Series
- Engine Model NumberKT725
- Engine Displacement725cc
- Engine Output22HP
- Starter TypeElectric
- Fuel Tank Capacity3.5 gallons (13.25 Litres)
- CylindersTwin
- Engine StartIgnition Key
- Engine Oil Capacity2.0 qts. US (1.89 L)
- LubricationFully pressurized
- Charging System12 amp regulated
- Fuel GaugeNo
- GovernorMechanical
- ChokeChoke-a-matic
- Air FilterDual element
- Oil FilterYes
- Fuel DeliveryCarburetor
Battery
- Battery210 CCA
- Battery TypeAGM (Absorbent Glass Mat)
- Battery Voltage12V
Drive System
- TransmissionHydro-Gear™ EZT-2200
- Forward Speed7 MPH / 11.3 Km/H
- Reverse Speed3.5 MPH / 5.6 Km/H
- Drive SystemHydrostatic
- Transmission HousingCast aluminum
Cutting Deck
- Deck Cutting Width46 in
- Deck WashYes
- Deck Material12-gauge steel
- Deck Engagement (PTO)Electric
- Deck ConstructionStamped
- Blade(s)2
- Deck LiftFoot pedal
- Cutting Height Range1.25"-3.75"
- Anti-Scalping2 gauge wheels
- Deck Positions8
Warranty
- Warranty3-year limited
- Frame WarrantyLifetime Limited
- Deck Shell Warranty3-year limited
- Commercial WarrantyNo
Chassis
- Frame2'' x 2'' tubular steel
- Turning Radius0°
- ROPSNo
- Rear Tow HitchYes
- Corrosion ProtectionYes
Controls
- Cruise ControlNo
- BrakesDisc
- Steering ControlLap Bars
Comfort
- Seat Type18" high back
- ArmrestsNo
- Seat AdjustmentKnob
Wheels
- Rear Tires20''x8-8''
- Front Tires11''x6''-5''
- Tire TreadTurf Master / Multi Trac
Additional Specifications
- Hour MeterNo
- Mulch KitAvailable separately
- Headlight(s)No
- Cup HolderYes
- Operator Presence SystemYes
- Parking BrakeLap Bar Integrated
- Model Number17ARFACTA66
Disclaimers
- SpecificationsSpecifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Hosepower*As rated by engine manufacturer
Accessories (Not Included):
19A70054OEM Bagger
